Canyon 16 Summing Mixer comes with an INSERT through which you may incorporate to the mixer bus whatever effect you can think of, equalizer, compressor…
However, the fun has not ended yet. Thanks to the BLEND control you may choose the ratio of dry to wet signal. This will allow you to perform operations such as parallel compression bringing consistency to the mixes without losing a shred of punch or ease.
Do your mixes seem small compared to those of the greatest sound engineers? You are in the right place.
Canyon will offer you the quality everybody seeks inside the analog world, providing your signal with the even harmonics’ excitation, the linear phase distortion, and the spatial dimension you can only find in the analog sphere.
We all love the digital world’s virtues, but sometimes the results turn out to be cold and distant.
Therefore, the Canyon 16 Summing Mixer will bring such a sense of humanity and authenticity back to the resulting sound, that you will never want to export a track “in the box” anymore.
Do you think 16 channels are not enough for your mixes? No problem!

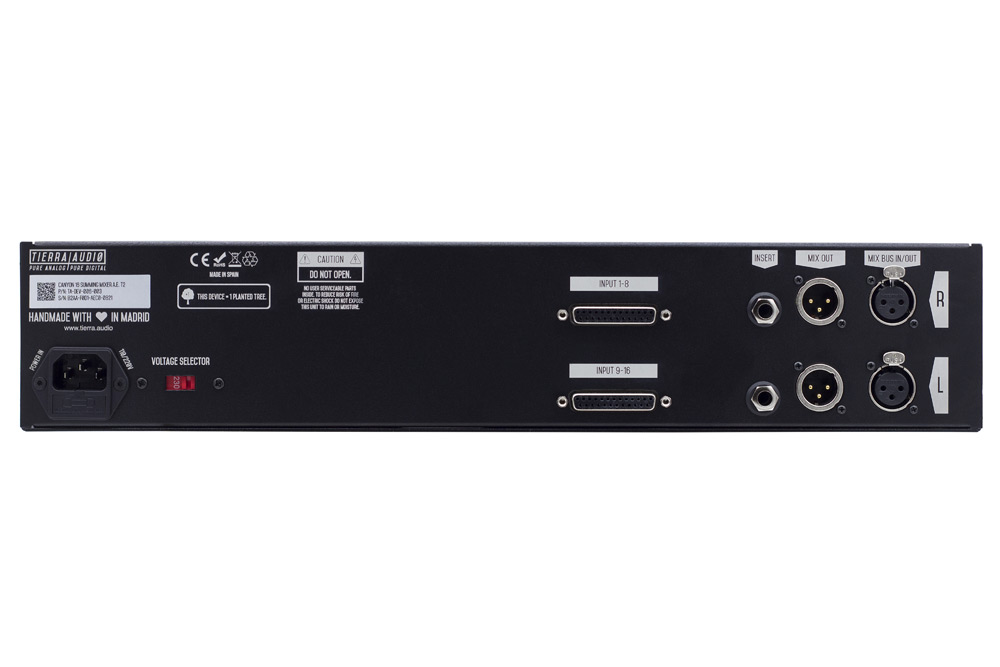

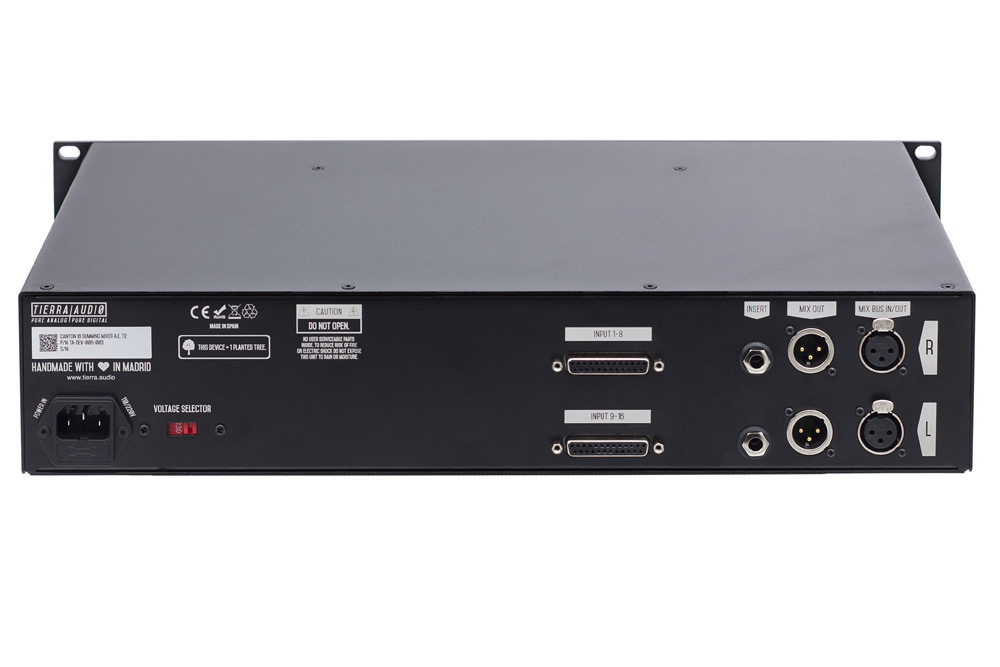

Through the MIX IN/OUT port of your Canyon 16 Summing Mixer, you will be able to link different Canyons up to 48 channels in the same mixer bus. Expand the possibilities of the analog addition for the most demanding mixes.
Line Output | Maximum output: +26 dBu 0.1% THD. | |
Distortion | 20 dBu output, less than 0,05% in the range of 40 Hz to 10 kHz. | |
Harmonic Distortion | Less than 0,0009% at +4 dBu output in the range of 20 Hz to 20 kHz. | |
Frequency response | From 20 Hz to 20 kHz (-0.5 dB). | |
Harmonic distortion | 20 dBu output, 60 Hz 0,03%, 1 kHz 0,01%,10 Khz 0,05%. | |
Background noise (Noise floor) | Less than 100 dBu. | |
Signal to noise ratio (SNR) | Greater or equal to 105 dBu. | |
Channels | 16 mono channels with individual volume and pan control. | |
Power source | 2 configurable voltage source settings on the back panel: 110 V AC 60 Hz and 220 V AC 50 Hz. | |
Operating temperature range | Between 32º and 104º Fahrenheit (between 0º and 40º Celsius). | |
Power source fuse | 500 mA. |
